IFM Mounting Kit for Ball Valves & Manual Valves

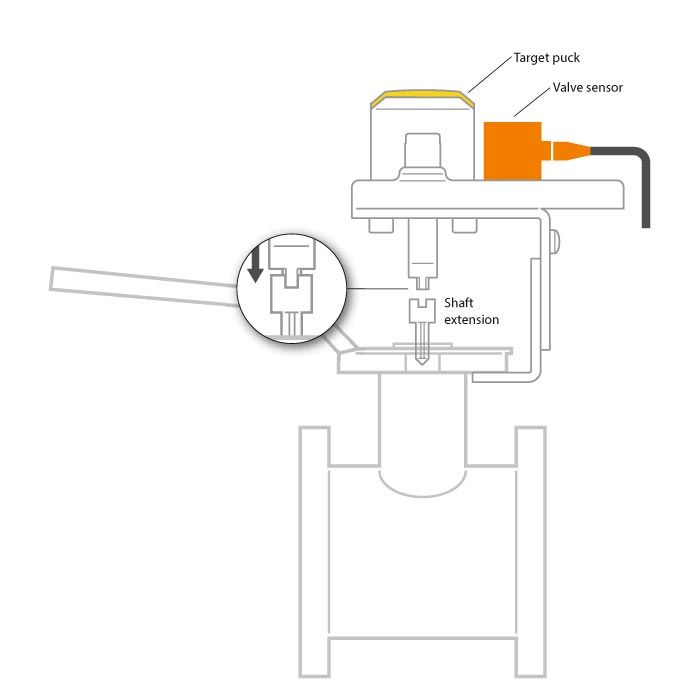

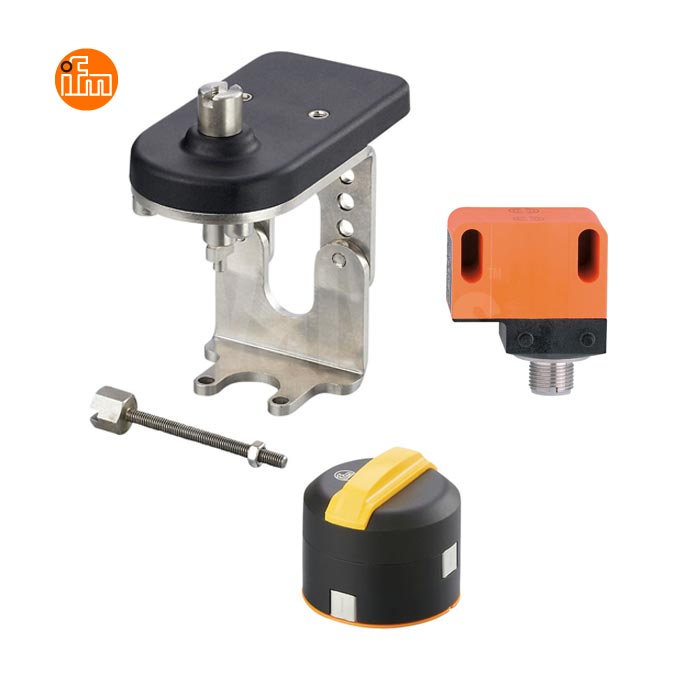

Our IFM Mounting Kits make it easy to fit feedback sensors to manually actuated valves. Our kits include the mounting bracket, sensor and puck.

Available sensors include: Industrial Inductive Dual Sensor, Inductive NAMUR ATEX Sensor and AS-Interface Dual Sensor, allowing you to select the right sensor for your application.

80/30 Target Puck & Adaptor included.

The mounting bracket is suitable for hazardous areas and for hazardous area applications, pair with the NAMUR ATEX Sensor.

Mounting Bracket Sizing:

Mounting Bracket Key Details:

• Reliable Limit Postion Feedback of Manual & Ball Valves
• Suitable for Various ISO Top Flange Fittings (see chart above)
• Easy Mouting & Safe Fixing
• Height Adjustable
• Suitable for Hazardous Areas
• Stainless Steel Design for use in Harsh Environments

Inductive Dual Sensor (IN5327) Key Details:

• Industrial Applications
• For Monitoring Valve Positions
• Reliable Position Feedback on Valve Actuators
• Non-contact and Self-cleaning System
• Quick and Secure Mounting with only three screws
• High Shock and Vibration Resistance
• LED on Sensor Indictating Valve Position
• M12 Connector
• 2 x Normally Open Output
• PNP Electrical Design
• -20°C to 80°C

Inductive NAMUR ATEX Dual Sensor (NN5008) Key Details:

• For Applications in Hazardous Areas
• For Monitoring Valve Positions
• Reliable Position Feedback on Valve Actuators
• For Connection to Intrinsically Safe Circuits
• Quick and Secure Mounting with only three screws
• M12 Connector
• 2 x Normally Closed Output
• NAMUR Electrical Design
• -20°C to 80°C
• Ex II 1G Ex ia IIB T6 Ga
• Ex II 2G Ex ia IIC T6 Gb
• Ex II 1D Ex ia IIIC T 90°C
• Ex II 1G Ex ia IIB T5 Ga
• Ex II 2G Ex ia IIC T5 Gb
• Ex II 1D Ex ia IIIC T 100°C

AC2315 AS-i Dual Sensor Key Details:

• For Monitoring Valve Positions
• Reliable Position Feedback on Valve Actuators
• Non-contact and Self-cleaning System
• Quick and Secure Mounting with only three screws
• AS-i Electrical Design
• -20°C to 70°C

Datasheets:

IFM Mounting Bracket Datasheet

IFM IN5327 Inductive Dual Sensor Datasheet

IFM NN5008 NAMUR ATEX Dual Sensor Datasheet

IFM AC2315 AS-Interface Dual Sensor Datasheet

IFM 80/30 Target Puck Datasheet
